Penn Elcom 2U Rackmount PDU 32A with power monitor
| Article number: | PDU16-PC32 |
| Availability: | On backorder |
| Delivery time: | 3-8 business days |
Penn Elcom 2U Power Distribution Unit 32A with power monitor
Description

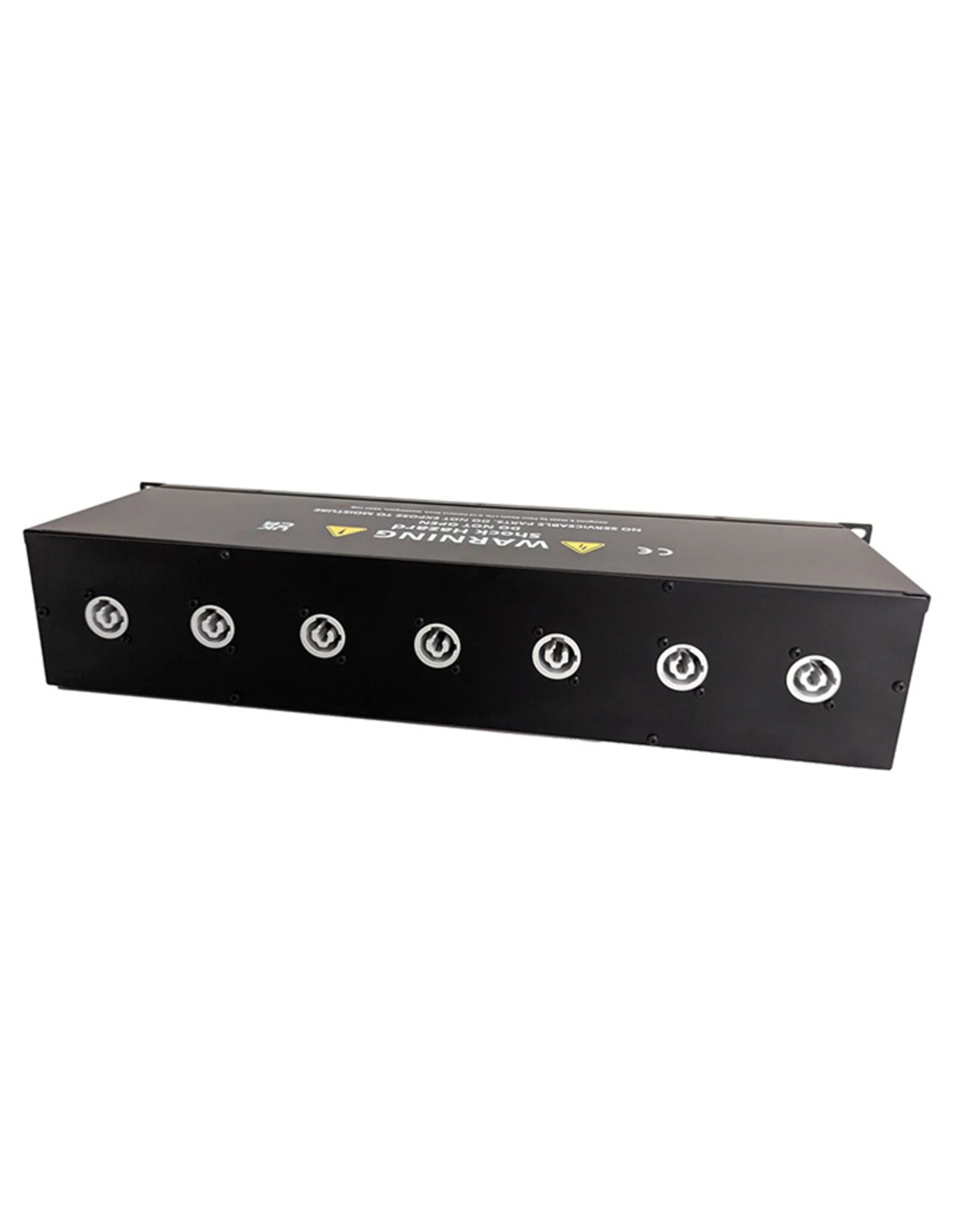

This PDU16-PC32 Penn Elcom power distribution unit is only 2U high. This is the ideal solution for quick power distribution in stage, studio and touring environments. For powersupply, this unit has two CEE 32A 2P+G 230V connectors (in/through) at the front. There is also a PowerCON output at the front. At the rear, this power distribution unit has seven PowerCON outputs. Ideal for quickly and easily distributing and monitoring the supplied voltage supply.

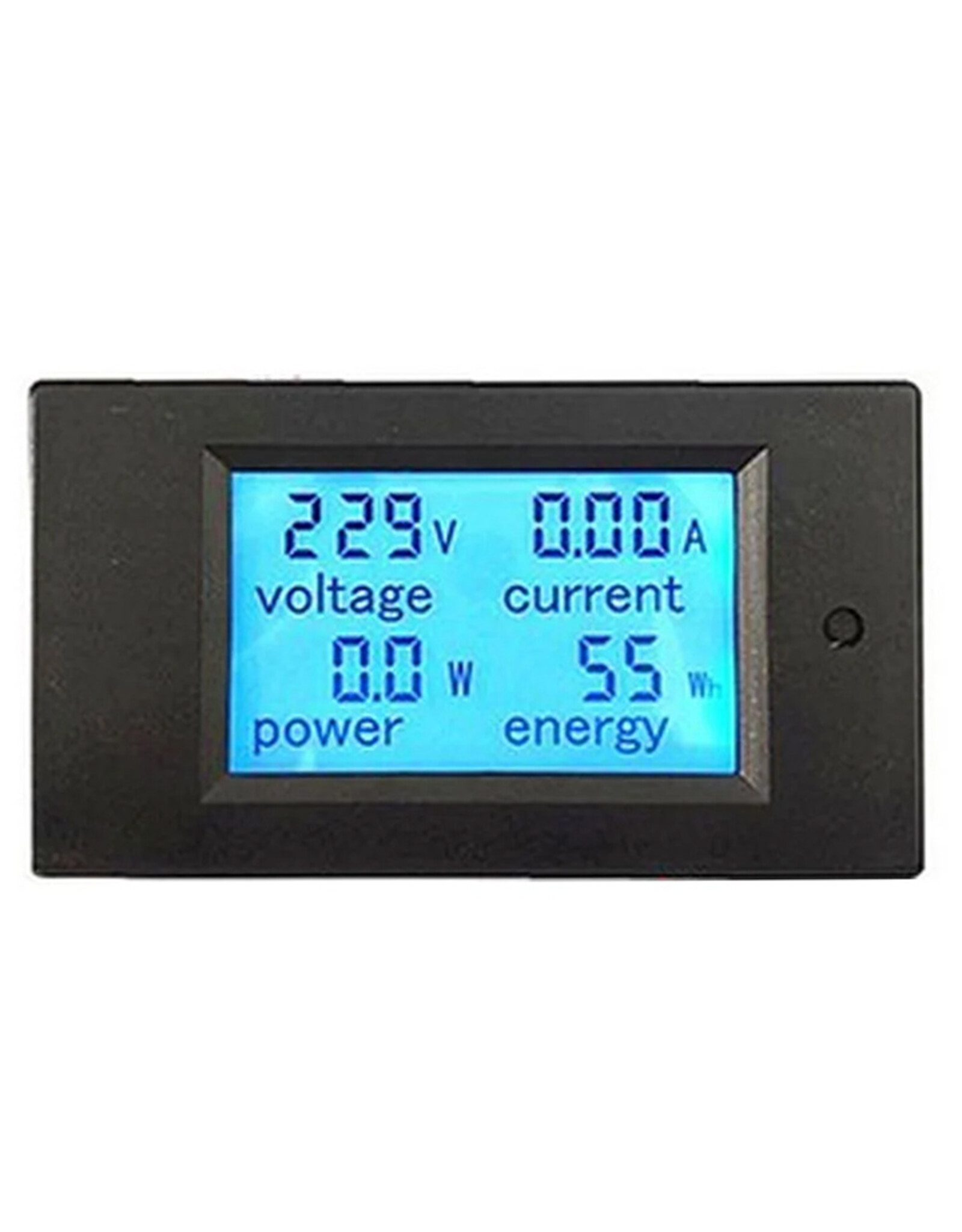

This unit has 2 power channels, channel A goes directly to the CEE output on the front, channel B goes via the power monitor to the 8 PowerCON outputs. As a result, the display immediately shows voltage (Volts), current (Ampere), power (Watts) and output (Wh).
Both channel A and B have an overload switch.
Specifications
- Format: 2U
- Unit width: 482.6 millimetres (19 inches)
- Unit height: 88.9 millimetres (2U)
- Unit depth: 140 millimetres
- Weight: 2500 grams
- Housing color: black
- Manufacturer: Penn Elcom
- Two CEE 32A 2P+G 230V connectors at front
- 1 PowerCON output at front
- 7 PowerCON outputs at rear
- Illuminated display by push-button
