Penn Elcom 2U Rackmount PDU 16A with power monitor
| Article number: | PDU16-EU |
| Availability: | On backorder |
| Delivery time: | 3-8 business days |
Penn Elcom 2U Power Distribution Unit 16A with power monitor
Description

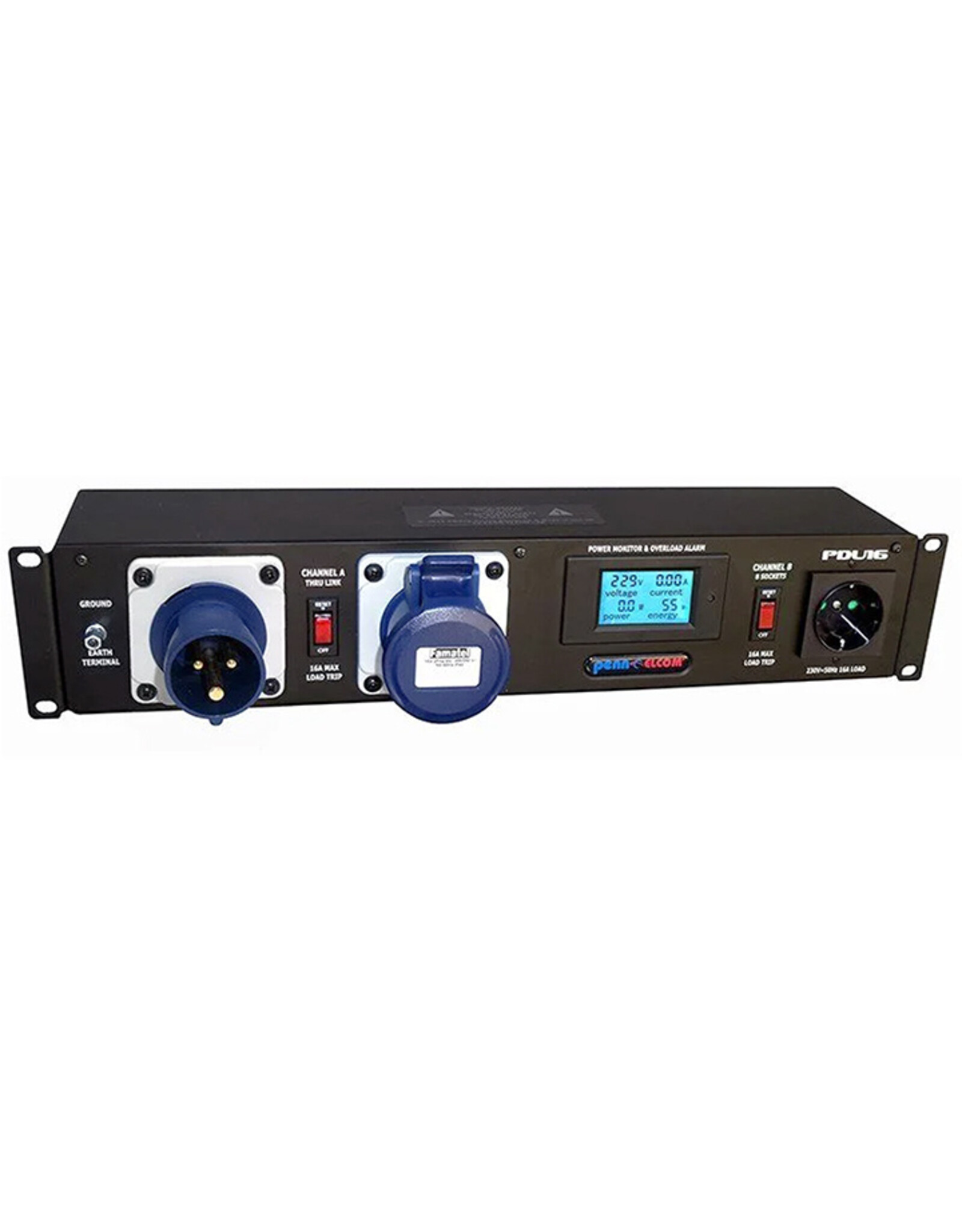

This PDU16-EU Penn Elcom power distribution unit is only 2U high. This is the ideal solution for quick power distribution in stage, studio and touring environments. For powersupply, this unit has two CEE 16A 2P+G 230V connectors (in/through) at the front. There is also a Schuko output at the front. At the rear, this power distribution unit has seven Schuko outputs. Ideal for quickly and easily distributing and monitoring the supplied voltage supply.

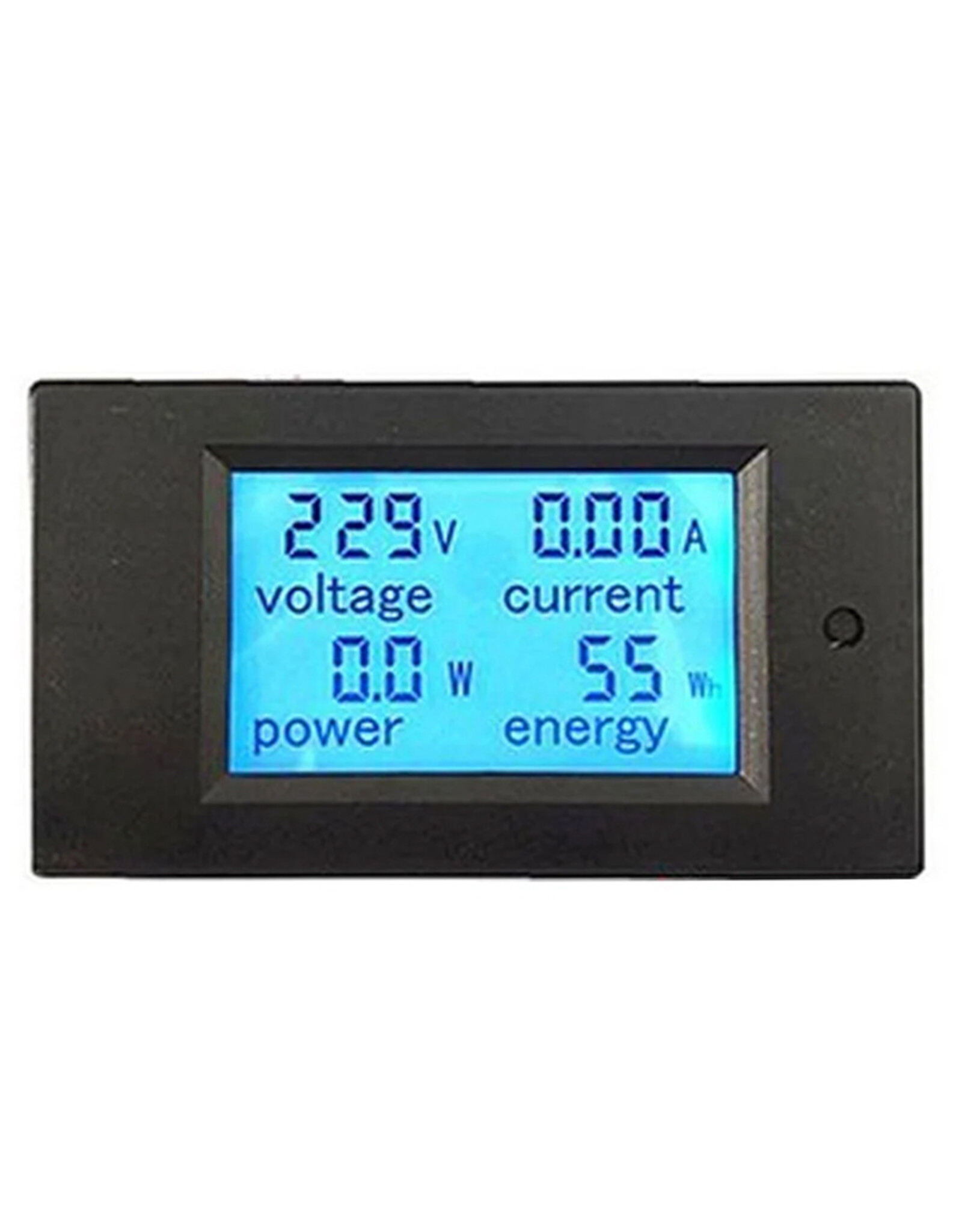

This unit has 2 power channels, channel A goes directly to the CEE output on the front, channel B goes via the power monitor to the 8 Schuko outputs. As a result, the display immediately shows voltage (Volts), current (Ampere), power (Watts) and output (Wh).
Both channel A and B have an overload switch.
Specifications
- Format: 2U
- Unit width: 482.6 millimetres (19 inches)
- Unit height: 88.9 millimetres (2U)
- Unit depth: 140 millimetres
- Weight: 2500 grams
- Housing color: black
- Manufacturer: Penn Elcom
- Two CEE 16A 2P+G 230V connectors at front
- 1 Schuko output at front
- 7 Schuko outputs at rear
- Illuminated display by push-button
Technical info (1,08Mb)
